ZX工业液晶屏系列
群创、友达、三菱常用屏基本参数信息 型号 尺寸 分辨率 背光 类型 接口 亮度 背光 寿命 可视角度 对比度 温度 群创 工规 屏 G057AGE-T01 5.7 320x240 LED TTL 500 50000 70/70/80/80 800:1 -30/85 G070Y2-L
为保护核心资料，以下资料为精简版；如需要详细版请点击右方浮动咨询或加QQ1049642430索取
详细介绍
群创、友达、三菱常用屏基本参数信息
| 型号 | 尺寸 | 分辨率 |
背光 类型 |
接口 | 亮度 |
背光 寿命 |
可视角度 |
对比度 |
温度 | |
| 群创工规屏 | G057AGE-T01 | 5.7" | 320x240 | LED | TTL | 500 | 50000 | 70/70/80/80 | 800:1 | -30/85 |
| G070Y2-L01 | 7" | 800x480 | LED | LVDS | 500 | 50000 | 60/60/70/70 | 600:1 | -30/85 | |
| G070Y2-T02 | 7" | 800x480 | LED | TTL | 500 | 50000 | 60/60/70/70 | 600:1 | -30/85 | |
| G080Y1-T01 | 8" | 800x480 | LED | TTL | 600 | 30000 | 60/60/70/70 | 600:1 | -30/85 | |
| G104AGE-L02 | 10.4" | 800x600 | LED | LVDS | 400 | 50000 | 70/70/80/80 | 700:1 | -30/85 | |
| G104X1-L03 | 10.4" | 1024x768 | LED | LVDS | 350 | 30000 | 88/88/88/88 | 1200:1 | -20/70 | |
| G104X1-L04 | 10.4" | 1024x768 | LED | LVDS | 500 | 50000 | 88/88/88/88 | 1000:1 | -30/70 | |
| G104XGE-L05 | 10.4" | 1024x768 | LED | LVDS | 500 | 50000 | 88/88/88/88 | 1200:1 | -30/70 | |
| G121AGE-L03 | 12.1" | 800x600 | LED | LVDS | 450 | 50000 | 89/89/89/89 | 1500:1 | -30/85 | |
| G121S1-L02 | 12.1" | 800x600 | LED | LVDS | 500 | 50000 | 89/89/89/89 | 1500:1 | -30/80 | |
| G121X1-L03 | 12.1" | 1024x768 | LED | LVDS | 600 | 50000 | 70/70/80/80 | 700:1 | -30/80 | |
| G121X1-L04 | 12.1" | 1024x768 | LED | LVDS | 500 | 30000 | 70/70/80/80 | 700:1 | -30/70 | |
| G121I1-L01 | 12.1" | 1280x800 | LED | LVDS | 400 | 50000 | 88/88/88/88 | 1000:1 | -10/70 | |
| G133IGE-L03 | 13.3" | 1280x800 | LED | LVDS | 500 | 30000 | 60/60/70/70 | 800:1 | -30/70 | |
| G150XGE-L04 | 15" | 1024x768 | LED | LVDS | 400 | 50000 | 70/70/80/80 | 700:1 | -30/80 | |
| G150XGE-L05 | 15" | 1024x768 | LED | LVDS | 250 | 50000 | 70/70/80/80 | 700:1 | -30/80 | |
| G154I1-LE1 | 15.4" | 1280x800 | LED | LVDS | 450 | 50000 | 70/70/80/80 | 700:1 | -30/80 | |
| G185BGE-L01 | 18.5" | 1366x768 | LED | LVDS | 300 | 50000 | 80/80/85/85 | 1000:1 | 0/60 | |
| M170ETN01.1 | 17 | 1280x1024 | LCD | LVDS | 250 | 50000 | 80/80/85/85 | 1000:1 | 0/50 | |
| M215HGE-L21 | 21.5 | 1920x1080 | LED | LVDS | 250 | 40000 | 80/80/85/85 | 1000:1 | 0/50 | |
|
友达 工业屏 |
G065VN01 V0 | 6.5" | 640x480 | CCFL | LVDS | 500 | 50000 | 70/70/80/80 | 600:1 | -20/70 |
| G065VN01 V2 | 6.5" | 640x480 | LED | LVDS | 700 | 50000 | 70/70/80/80 | 600:1 | -30/85 | |
| G070VW01 V0 | 7" | 800x480 | LED | LVDS | 400 | 50000 | 80/80/80/80 | 1000:1 | -30/85 | |
| G070VW01 V1 | 7" | 800x480 | LED | LVDS | 350 | 30000 | 50/60/65/65 | 700:1 | -20/70 | |
| G084SN05 V7 | 8.4" | 800x600 | CCFL | LVDS | 450 | 50000 | 80/60/80/80 | 600:1 | -30/85 | |
| G084SN05 V9 | 8.4" | 800x600 | LED | LVDS | 450 | 50000 | 80/60/80/80 | 600:1 | -30/85 | |
| G104XVN01.0 | 10.4" | 1024x768 | LED | LVDS | 400 | 50000 | 89/89/89/89 | 1400:1 | -30/80 | |
| G121XN01 V0 | 12.1" | 1024x768 | LED | LVDS | 500 | 50000 | 80/80/80/80 | 700:1 | -30/80 | |
| G121SN01 V4 | 12.1" | 800x600 | LED | LVDS | 450 | 50000 | 65/75/80/80 | 700:1 | -30/85 | |
| G150XG01 V3 | 15" | 1024x768 | LED | LVDS | 400 | 50000 | 60/80/80/80 | 700:1 | -30/85 | |
| G150XG01 V4 | 15" | 1024x768 | LED | LVDS | 350 | 50000 | 60/80/80/80 | 700:1 | -10/60 | |
| G150XG03 V4 | 15" | 1024x768 | LED | LVDS | 250 | 50000 | 70/60/80/80 | 700:1 | -30/85 | |
| G150XG03 V5 | 15" | 1024x768 | LED | LVDS | 250 | 30000 | 60/80/80/80 | 700:1 | -30/85 | |
| G150XTN03.0 | 15" | 1024x768 | LED | LVDS | 250 | 30000 | 80/80/70/70 | 700:1 | 0/65 | |
| G150XTN05.0 | 15" | 1024x768 | LED | LVDS | 350 | 50000 | 70/60/80/80 | 700:1 | -30/85 | |
| G151EVN01.0 | 15.1" | 1280*248 | LED | LVDS | 300 | 50000 | 89/89/89/89 | 2000:1 | 0/50 | |
| G156XW01 V1 | 15.6" | 1366x768 | LED | LVDS | 300 | 50000 | 80/80/85/85 | 500:1 | 0/60 | |
| G170EG01 V1 | 17" | 1280x1024 | LED | LVDS | 350 | 50000 | 70/70/70/70 | 1000:1 | -30/85 | |
| G173HW01 V0 | 17.3" | 1920x1080 | LED | LVDS | 400 | 50000 | 60/80/80/80 | 600:1 | 0/70 | |
| G185XW01 V1 | 18.51 | 1366x768 | LED | LVDS | 300 | 50000 | 80/80/85/85 | 1000:1 | 0/50 | |
| G190SF01 V0 | 19" | 1680x342 | LED | LVDS | 300 | 50000 | 89/89/89/89 | 2000:1 | 0/50 | |
| G190EG01 V1 | 19" | 1280x1024 | LED | LVDS | 350 | 50000 | 80/80/85/85 | 1000:1 | 0/50 | |
| G220SVN01.0 | 22" | 1680x1050 | LED | LVDS | 250 | 30000 | 89/89/89/89 | 2000:1 | TBD | |
| G240HW01 V0 | 24" | 1920x1080 | LED | LVDS | 300 | 50000 | 89/89/89/89 | 5000:1 | 0/50 | |
|
三菱工业屏 |
AA043MA01 | 4.3" | 800X480 | LED | TTL | 200 | 50000 | 65/65/65/45 | 400:1 | -20/70 |
| AA050ME-T1 | 5.0" | 800X480 | LED | TTL | 350 | 50000 | 65/65/65/45 | 450:1 | -20/70 | |
| AA065VE11 | 6.5" | 640X480 | LED | LVDS | 1200 | 50000 | 80/80/80/60 | 600：1 | -30-80 | |
| AA065VD11 | 6.5"" | 640X480 | LED | LVDS | 1300 | 50000 | 80/80/80/60 | 600：1 | -30-80 | |
| AA065VD01 | 6.5"" | 640X480 | LED | LVDS | 700 | 50000 | 80/80/80/60 | 600：1 | -30-80 | |
| AA084XB01 | 8.4" | 1024X768 | LED | LVDS | 500 | 50000 | 80/80/60/80 | 600：1 | -30-80 | |
| AA104VH02 | 10.4" | 640X480 | LED | LVDS | 800 | 50000 | 80/80/60/80 | 800：1 | -20-70 | |
| AA104SH02 | 10.4" | 800X600 | LED | LVDS | 700 | 50000 | 80/80/80/80 | 700：1 | -30-80 | |
| AA104SH12 | 10.4" | 800X600 | LED | LVDS | 1200 | 50000 | 80/80/80/60 | 700：1 | -30-80 | |

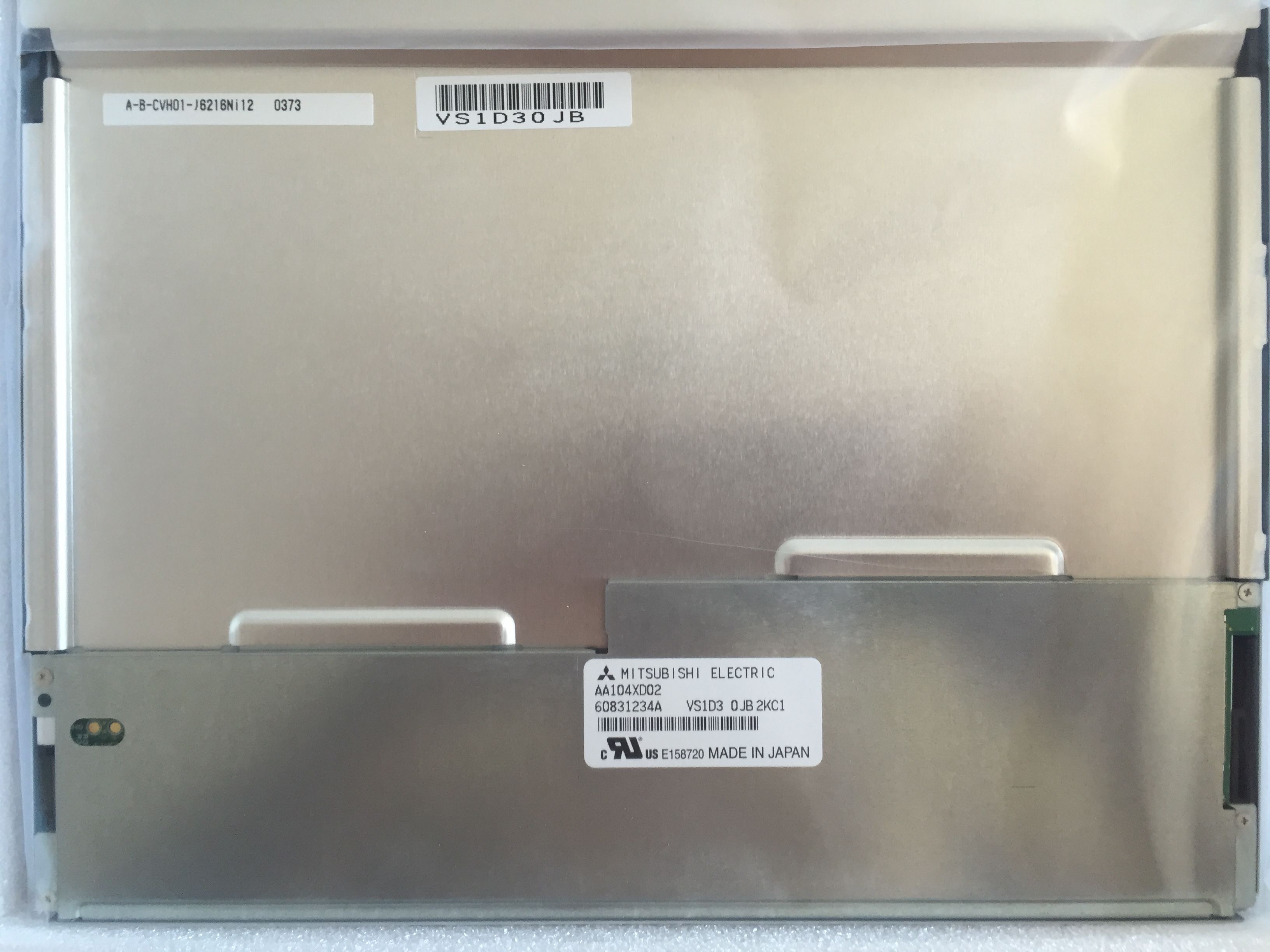

| AA104XD02 | 10.4" | 800X600 | LED | LVDS | 1200 | 50000 | 80/80/80/60 | 700：1 | -30-80 | |
| AA104XD12 | 10.4" | 1024X768 | LED | LVDS | 600 | 50000 | 80/80/65/65 | 700：1 | -30-80 | |
| AA104XF02 | 10.4" | 1024X768 | LED | LVDS | 600 | 50000 | 80/80/80/60 | 700：1 | -30-80 | |
| AA104XG02 | 10.4" | 1024X768 | LED | LVDS | 500 | 50000 | 85/85/85/65 | 1000：1 | -30-80 | |
| AA121TD01 | 12.1" | 1280X800 | LED | LVDS | 700 | 50000 | 80/80/80/65 | 700：1 | -30-80 | |
| AA121XK01 | 12.1" | 1024X768 | LED | LVDS | 500 | 50000 | 80/80/60/80 | 600：1 | -30-80 | |
| AA121XL01 | 12.1" | 1024X768 | LED | LVDS | 1000 | 50000 | 80/80/60/80 | 600：1 | -30-80 | |
| AA150XT01 | 15.0" | 1024X768 | LED | LVDS | 800 | 50000 | 80/80/60/80 | 600：1 | -30-80 | |
| AA170EC01 | 17.0" | 1280X1024 | LED | LVDS | 600 | 50000 | 80/80/60/80 | 800：1 | -20-70 | |
